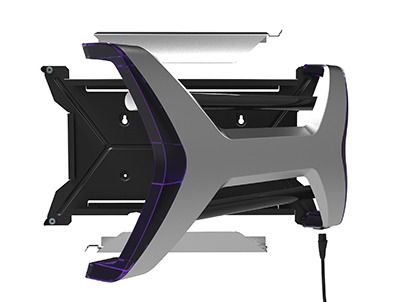

x-trap 50² LED


Executed with a hinge mechanism magnetic locksystem. With its discreet design, the X-trap 50/2 LED is recommended for use in shops and restaurants and dry industrial environments. Easy to service, stylish and effective; the X-trap 50/2 LED offers it all.


  • Executed with a hinge mechanism magnetic locksystem.
  • Robust metal housing
  • Energy saving UV-A LED technology offers over 90 kW of savings per unit per year.
  • 3 year lifespan (25.000 hrs) of the UV-A LED lamps




LED lamps

LED technology offers clear advantages in terms of efficiency (lower energy consumption) and its footprint (compactness)


Insects are caught on a glue layer, which preserves them over time. The caught insects can be counted and insect species can be analysed, which offers clear advantages in an IPM approach.

Recently special LED’s have entered the market, which have the ability to generate ultraviolet light; UV-A LED’s. These special LED’s form the heart of a new generation UV-A lamps; the ASTRON UV LED 15 Watt lamp. The fact that the name of this new LED lamp mentions 15 Watt lies in the fact that this lamp replaces a traditional 15 Watt lamp and for this it only needs 11 Watts to offer the same UV-A output performance.


Advantages ASTRONUV LED 15 Watt lamp

• The ASTRON UV LED 15 Watt lamp is designed for low power consumption and high brightness.
• There are no harmful substances in the ASTRON UV LED 15 Watt lamp.

Conclusion: It’s an eco-friendly product.

• The ASTRON UV LED 15 Watt lamps complies to the int. standards and are perfectly save to use.
• Specially designed single ultraviolet wavelength, optimised for insect control. In other words, The perfect replacement lamp for the 15 Watt mercury lamp.
• The ASTRON UV LED 15Watt lamp does not require a ballast. Therefore it can be connected directly to the mains

• The ASTRON UV LED 15 Watt lamp only consumes 11 Watt and offers significant energy savings over the traditional 15 Watt lamp. (see the table here below)
• The ASTRON UV LED 15 Watt lamp has an operational lifetime of 25.000 hrs (3 years of constant use*2)
• The ASTRONUV LED 15 Watt lamp uses class A LED’s which comply to the highest standards. Above all, this ensures a trouble free use.
• The ASTRONUV LED 15 Watt lamp is executed in a full shatterproof executed design (no glass is used)
• Guarantee period: 2 years on electrical failures (mechanical defaults are excluded from guarantee)

www.alcochemhygiene.com for more products of Alcochem Hygiene.

Area coverage
Light source
Type of UV lamps
Electrical supply
Catch specifications
Power consumption
Degree of protection
Int. building norm
Lamp life time
Dimensions (L x D x H)
Mounting position
50 – 80 m2
2x 15 Watt Astron UV-A LED lamps
UV LED Lamps RoHS certified
100-240 V ~ 50-60 Hz
By means of long life glue board
22 W
4,5 Kg
IP 20 (drip proof)
2 year return to base
acc. IEC-335-259 int. standard for insect exterminators
25.000 hrs (*)
538 x 113 x 311 mm
Wall mounted
Export box included
Enclosed with the unit in English
Unit can be dismantled without special tools

(*) after 25.000 hours a loss of 30% in efficiency has to be expected and lamps need to be replaced

  • Highly effective due to front, side, top & bottom access for flying insects
  • 2x ASTRON 15 Watt UV-A LED, power consumption 22 W
  • Compact design, blends into the background
  • Proven design offers a trouble free life time of min 5 years
  • Unit can take a variety of glue boards, which allows for a trouble free switch
  • Optional metal inlay parts cover up the glue board (for front of house use)
  • Unique model, front opening offer easy access & fast service of GB & lamps
  • Unit can be mounted in 4 positions on the wall or on the ceiling
  • Unit is HACCP compliant
  • Easy & fast to clean Front of House design & Industrial design
